[12493]

Regular price$40,000.00
/

Note: this product ships 12 weeks after order is received.

Print Your World -- Even Larger.

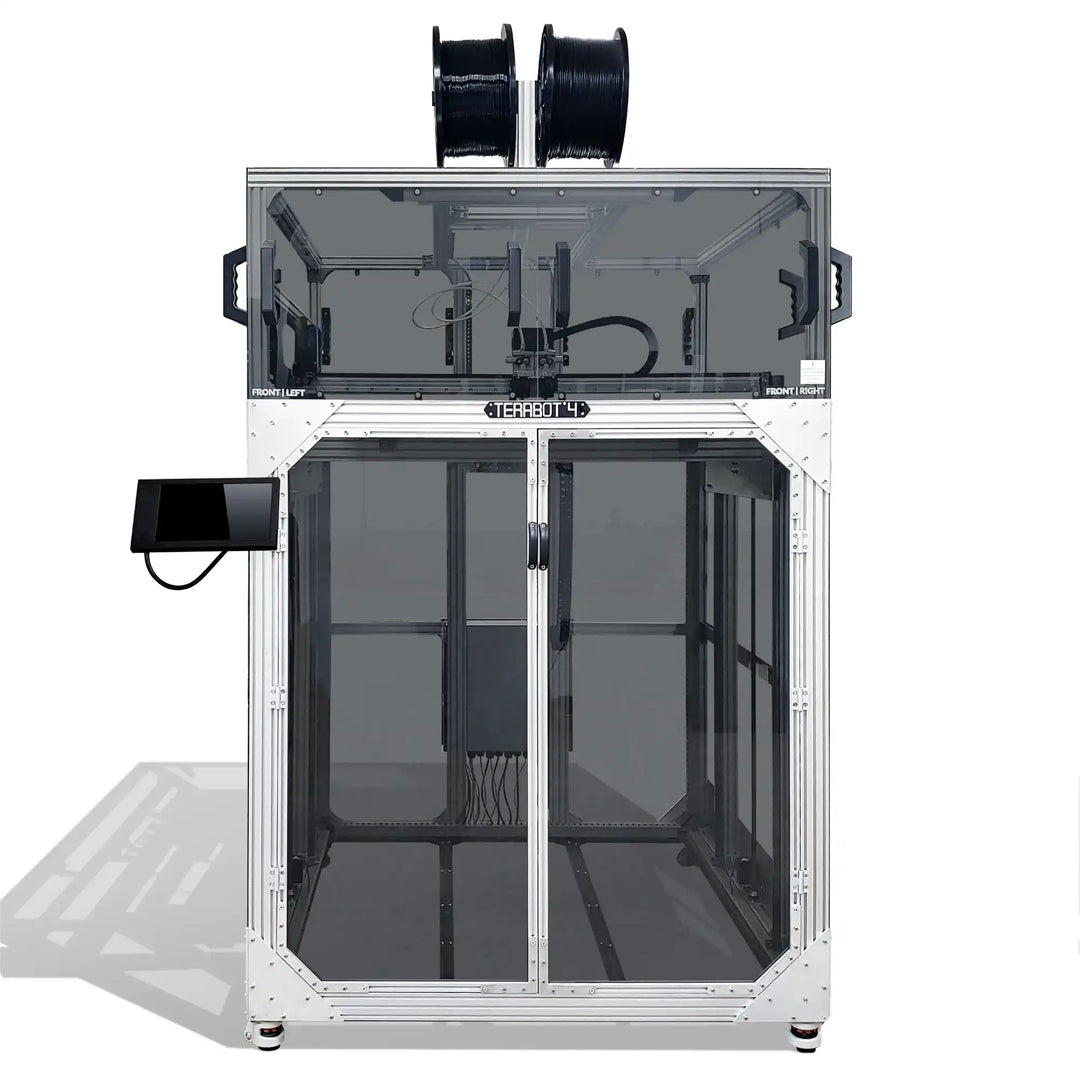

Fulfilling your large-format 3D printing needs, re:3D now offers Terabot, expanding the size of your build volume to 915mm [X]  x 915mm [Y] x 915mm [Z]. Terabot arrives straight to your door in a wooden crate on casters. Simply remove from the packaging, plug-in, calibrate, and print.

For more information on the Gigabot line of large-scale, industrial, 3D printers - please see: https://re3d.org/gigabot/

Fully Assembled Terabot Includes :

  • Heated Bed (Up to 115 degrees Celsius)

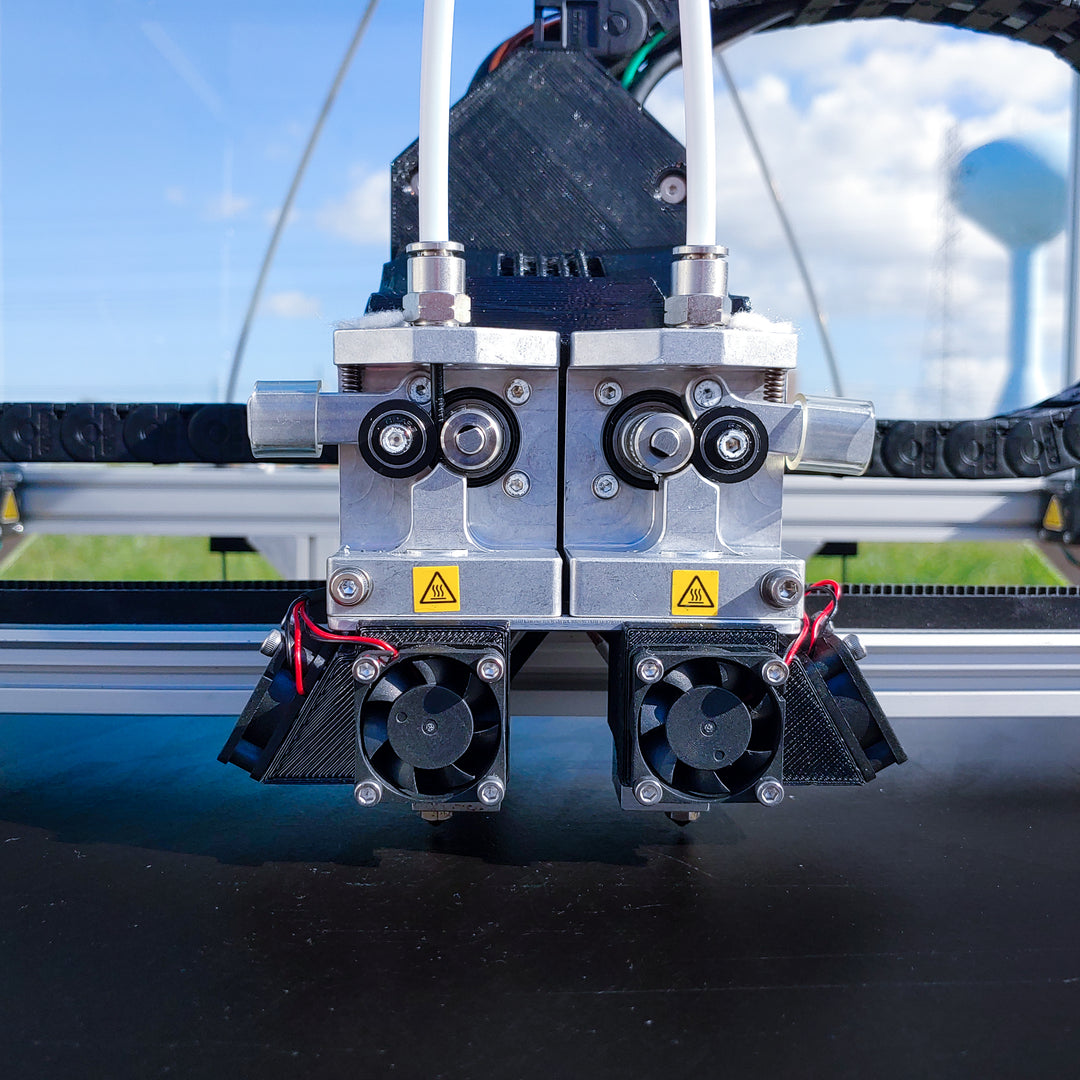

  • Dual Extruders
  • PRINTinZ Adhesive Print Surface
  • Leveling caster wheels
  • Full polycarbonate enclosure
  • Full color 10” LCD touchscreen with optional network connecting for remote monitoring & control
  • 5 lbs of PLA Filament
  • Gigabot Tool Kit [Print removal tool, pliers, pick, 8mm wrench, and Allen Wrench set)
  • Mounted Harness for LCD touchscreen

Extended Warranty:

  • 6 Months: Free
  • 1 Year: $600
  • 2 Year: $1,400
  • 3 Year: $2,200
    re:3D would like to ensure the best rate possible and a great shipping experience to our customers. Due to this product being shipped by freight, we cannot accurately calculate shipping rates through our online store. To purchase or to obtain a shipping quote, please contact sales@re3d.org.

    PRINTING

    Technology Fused Filament Fabrication

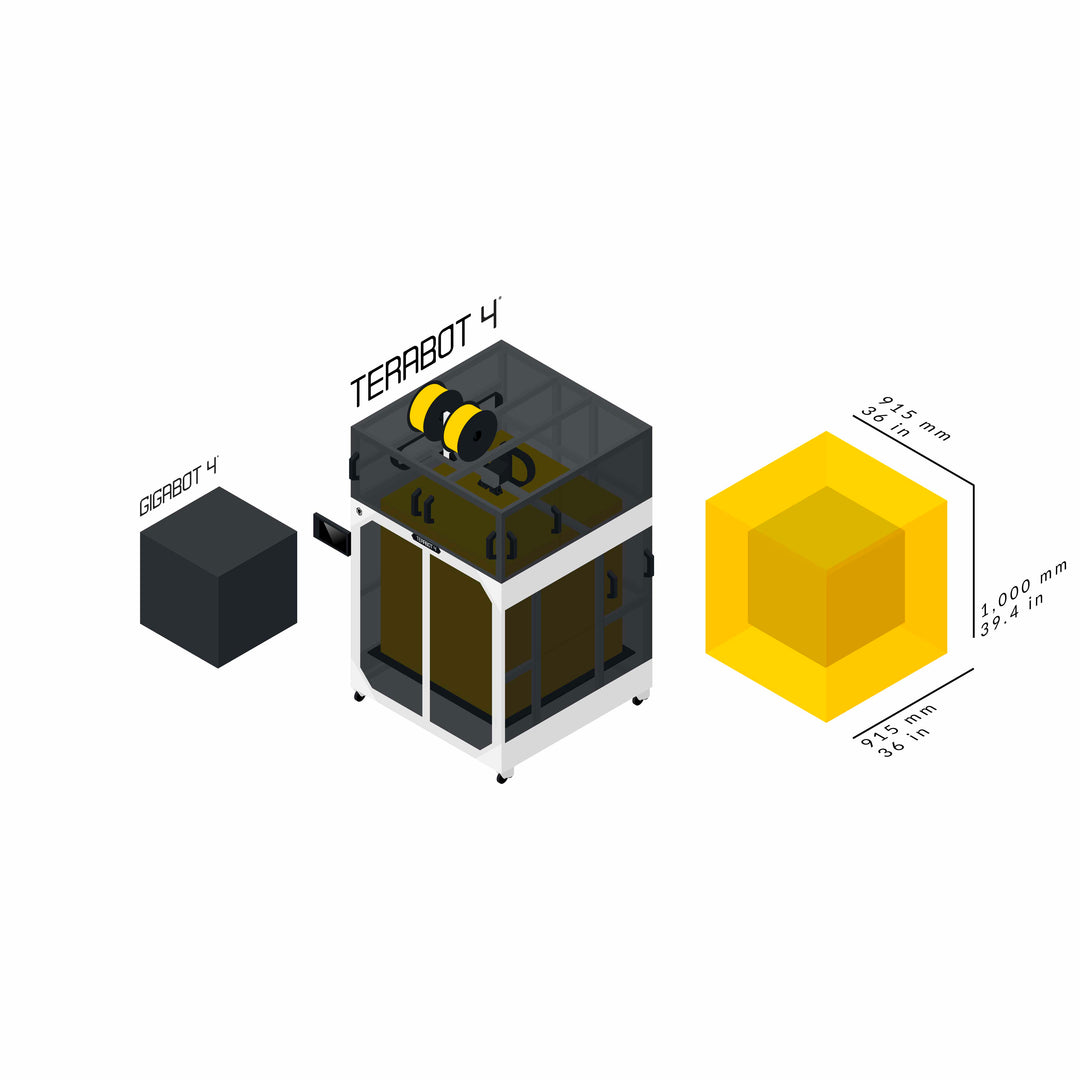

    Build Volume 915 x 915 x 1000 mm | 36 x 36 x 39.4 in
    Hot Ends
    Compatible with hardened steel and 20 Series hot ends
    Materials
    Thermoplastics melting below 320 ºC
    Layer Resolution
    70-600 micron
    Printing Speed
    Up to 60 mm/sec XY
    Nozzle Diameter
    0.25, 0.4 or 0.8 mm
    Filament Diameter
    2.85 mm


    MECHANICAL

    Construction Robust Aluminum Cartesian Frame
    Build Plate
    Cast aluminum blanchard ground flat 0.5" thick build plate
    Stepper Motors NEMA 17 & 23


    TOUCHSCREEN

    Bot Control

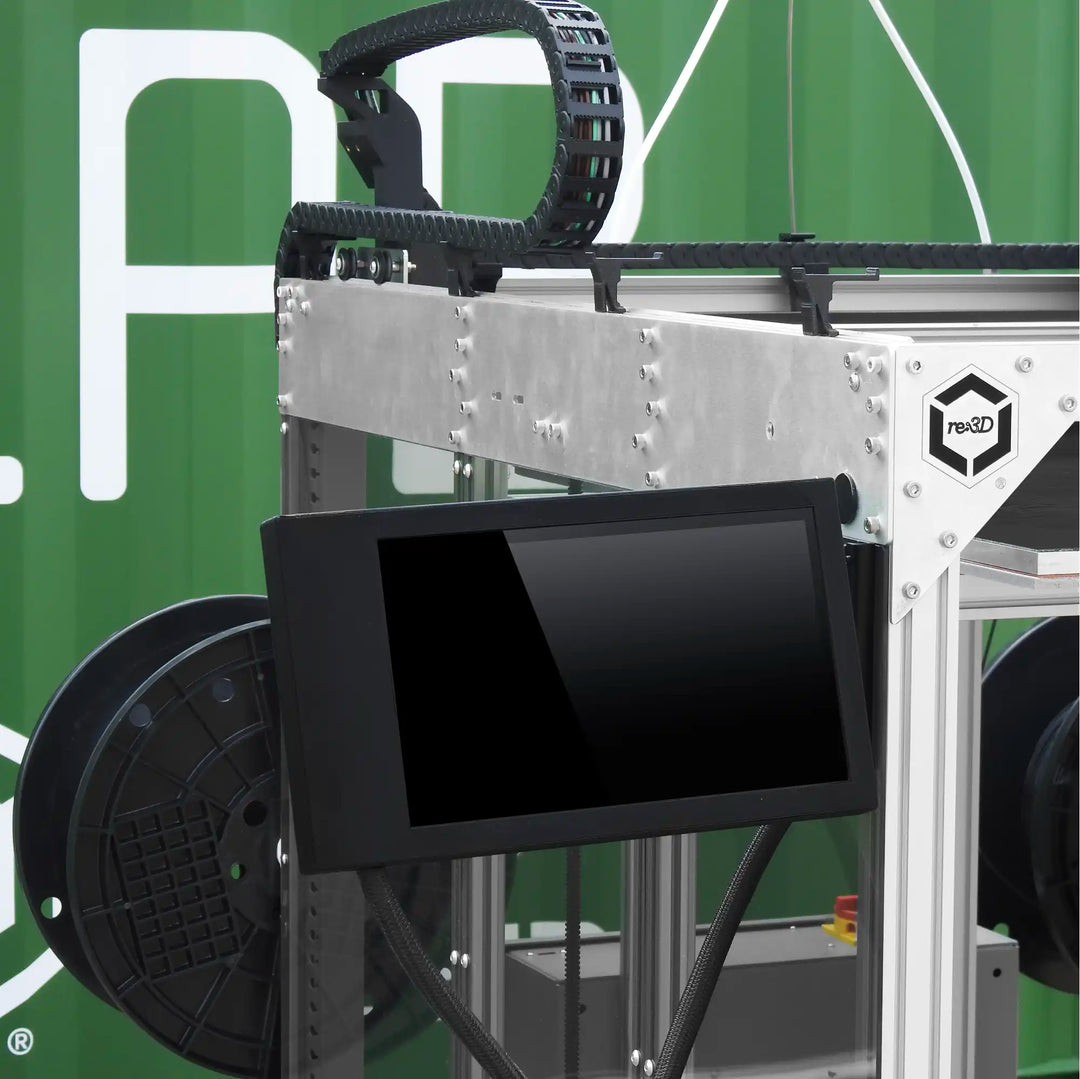

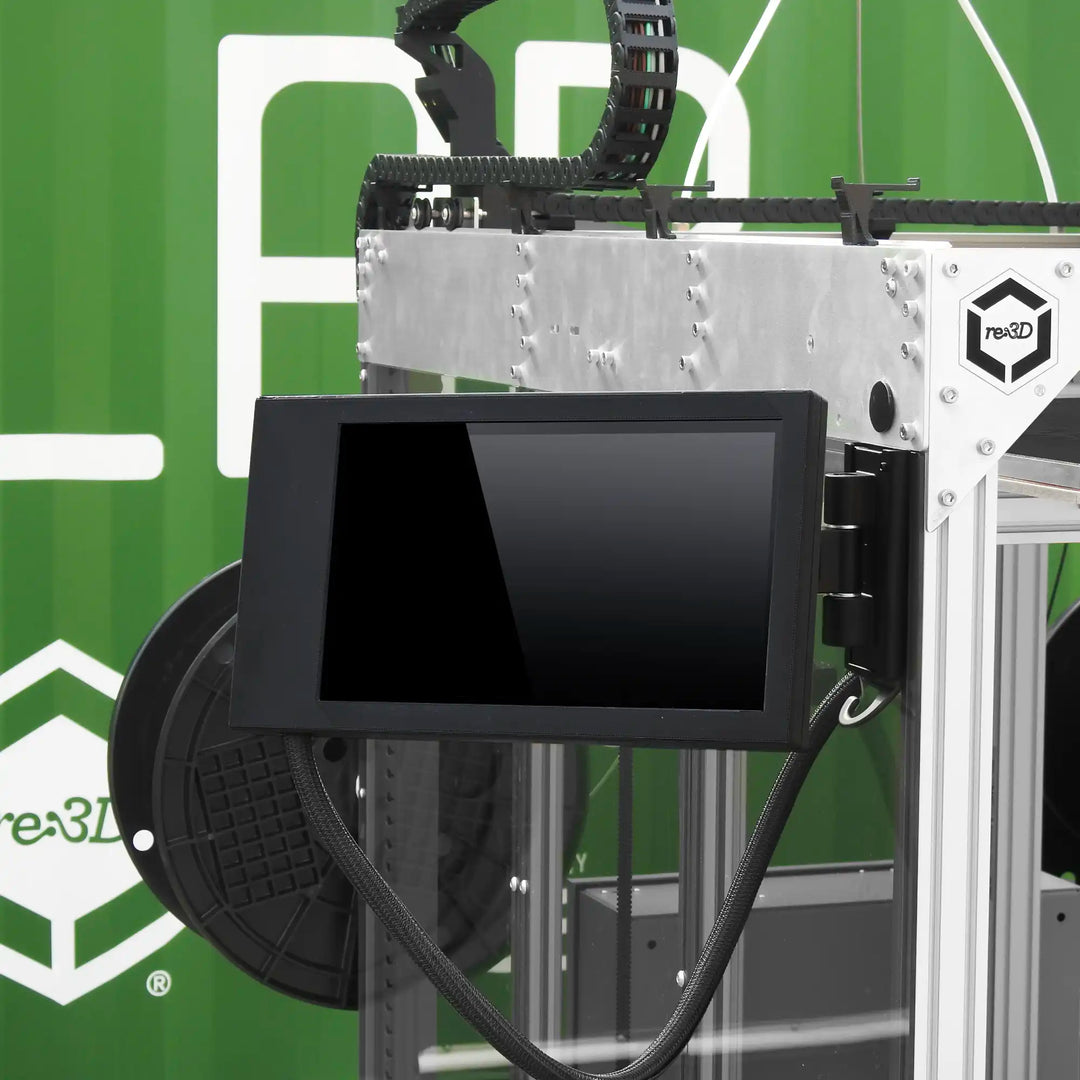

    Full Color 10” LCD Touchscreen with Mainsail for Klipper interface

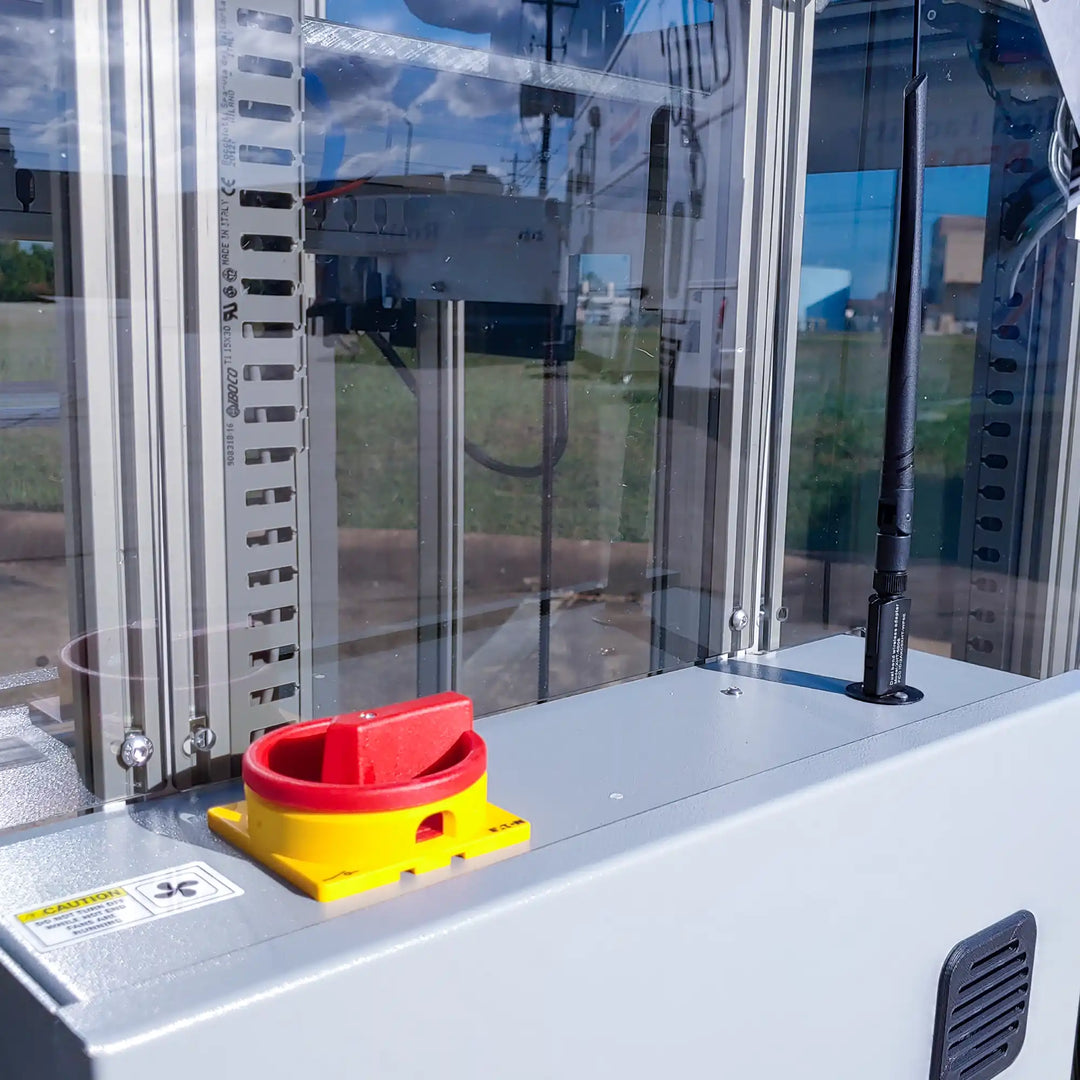

    Connectivity
    Optional network connecting for local monitoring & control


    SOFTWARE

    File Transfer Method
    USB or wifi
    Open Source
    Open Source Klipper Software Stack
    Upload File Type
    G-code (.gcode) rendered from .stl
    Printing Workflow
    Includes Simplify3D setting profiles


    ELECTRICAL

    Power
    110V 60Hz 20A or 220V 50Hz 10A
    Extruder Temp
    Up to 320° C
    Build Surface Temp
    Up to 115°C



    SIZE

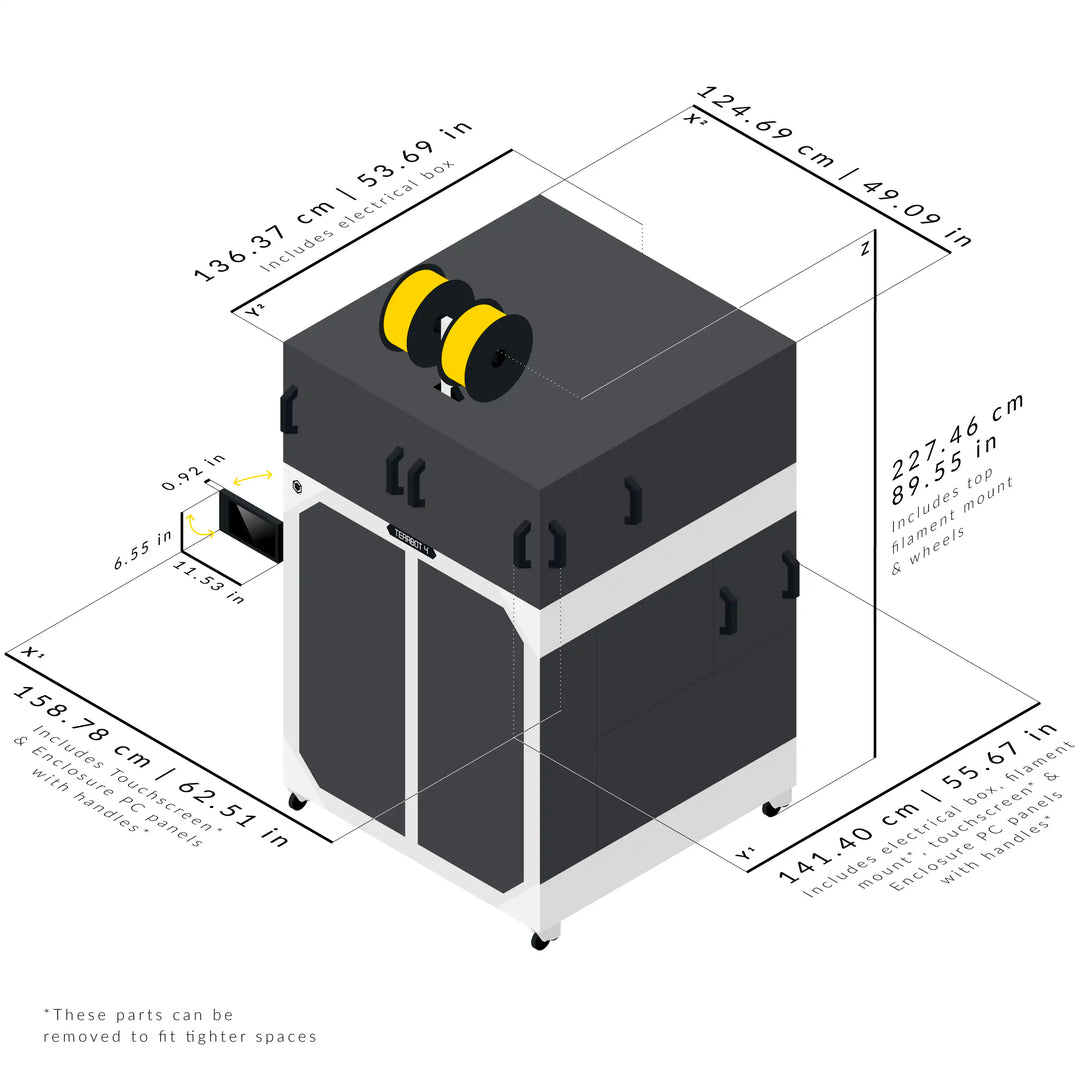

    Dimensions A1 158.78 x 141.40 x 227.46 cm | 62.51 x 55.67 x 89.55 in
    Dimensions B2 124.69 x 136.37 x 227.46 cm | 49.09 x 53.69 x 89.55 in

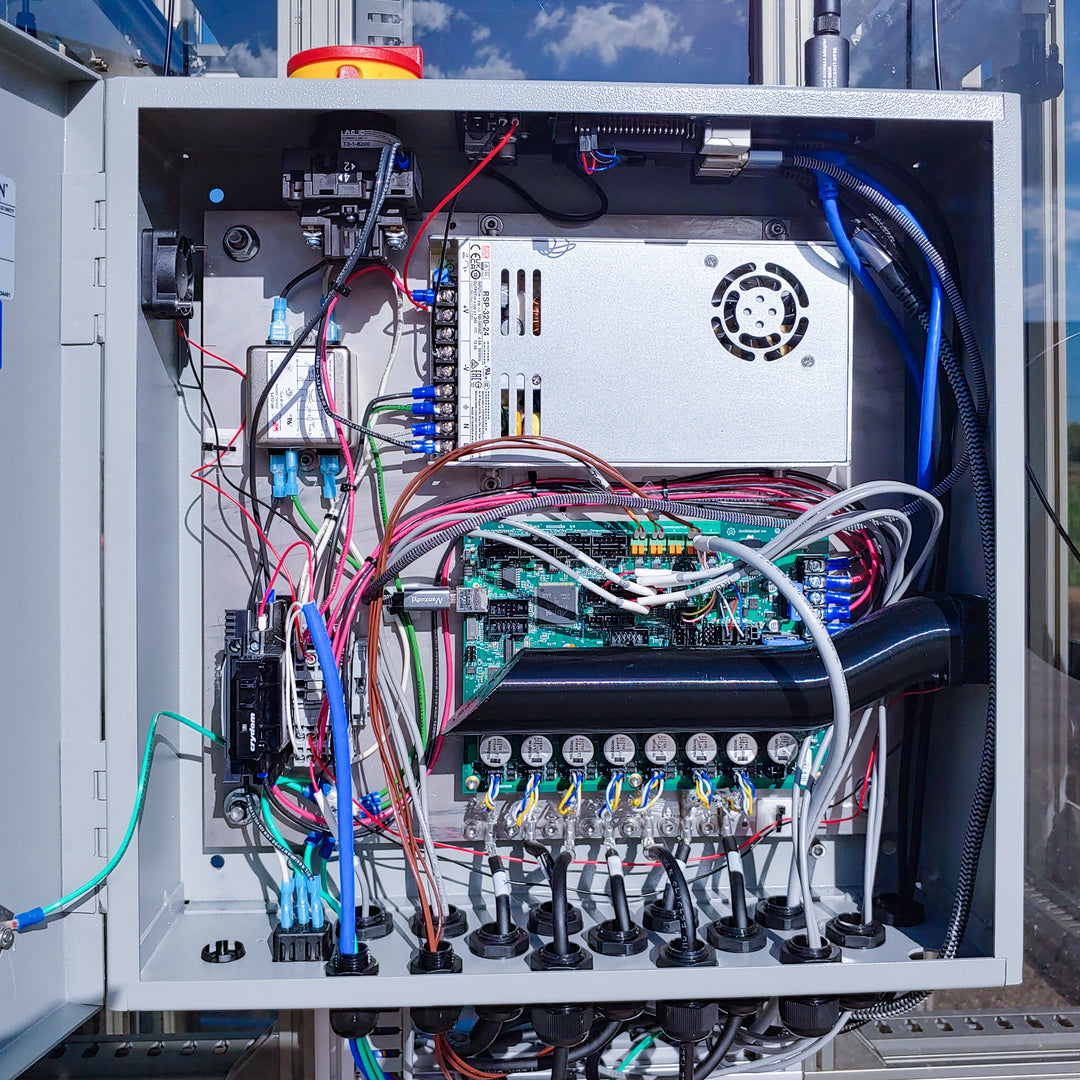

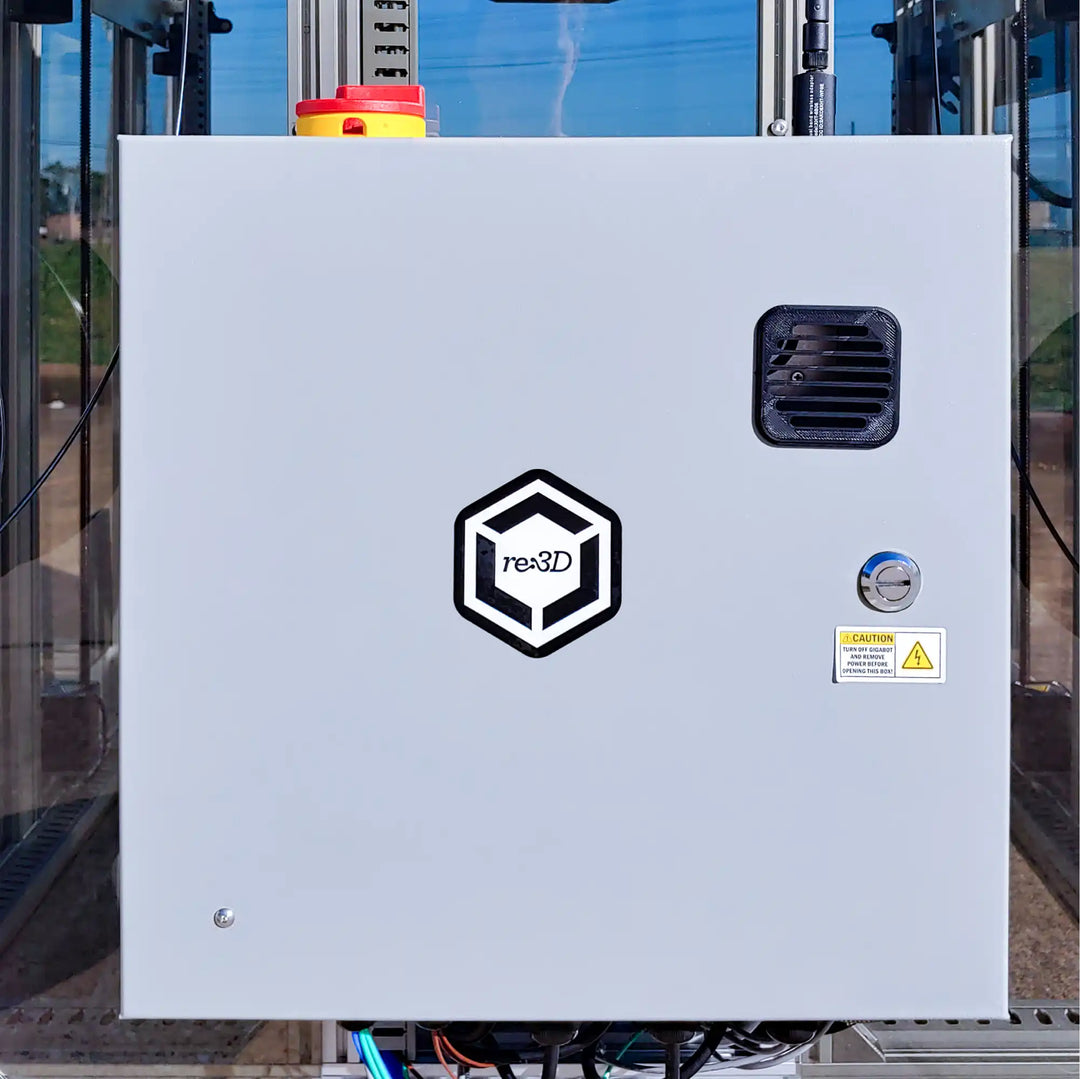

    Dimensions measured with full enclosure PC panels with handles, top filament spool holders, touchscreen, electrical box & wheels.

    Dimensions measured without removable parts: full enclosure PC panels with handles & touchscreen.

    Quote valid for 30 days. Payment to be made in full in advance in order for product to ship. Refused Gigabot shipments will be charged return shipping and a $1000 restocking fee. Orders paid with a credit card or PayPal will be charged a 3% processing fee.  Duty & tax are obligation of buyer. If this transaction involves an export of items from the United States (including, but not limited to, commodities, software or technology) subject to the Export Administration Regulations, such items were exported from the United States by Seller in accordance with the Export Administration Regulations.  Customer agrees that it will not divert, use, export or re-export such items contrary to United States law. Any diversion of an item contrary to US law is strictly prohibited.  Customer expressly acknowledges and agrees that it will not export, re-export, or provide such item(s) to any entity or person within any country that is subject to United States economic sanctions within the control of the Office of Foreign Assets Control without obtaining prior authorization from the United States Government.

    All products may be returned within 30 days of receipt of the item.  Items that are returned within 15 days of receipt in unused condition shall be subject to a full refund.  If the item is returned within days 16 through 30 or in used condition, there will be a 10% restocking fee deducted from the refund.  All Final Sale merchandise cannot be returned. Other nonreturnable purchases include digital content, gift packaging, memberships, completed services, consumable items including 3D printer filament, and items returned that are damaged, unsanitary or missing major contents.  We warrant the Gigabot against defects in materials and workmanship under ordinary use for 30 days from the date of receipt. This limited warranty applies only to hardware components of the Gigabot that are not subject to accident, misuse, neglect, fire or other external causes, unauthorized use, alterations, or repair, installation or enabling of unauthorized software or services, unauthorized alterations to the Gigabot or unauthorized resale.  Any voltage usage outside of the manufacturer's offerings is not covered by warranty and re3D will not be liable for injury incurred by the user.

    If we elect to do a replacement of your device, we will place the cost of the device (the then prevailing MSRP plus tax) hold on your credit card. We will charge the full retail price of the replacement device if we do not receive your original device within 21 days of delivering your new device.

    Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.  Re3D reserves the right to make changes without further notice to any products to improve reliability, function, or design. Re3D does not assume any liability arising out of the application or use of any of its products; neither does it convey any license under its patent rights of others.
